Candidate Models / Seawind 1260
Specs summary: ~41 ft cruising catamaran. Published dimensions fit your baseline envelope, with comfortable margin under the 63 ft (19.2 m) bridge-clearance cap.
| Parameter | Target |
|---|---|
| LWL | 38-48 ft (11.58-14.63 m) |
| LOA | 39-52 ft (11.89-15.85 m) |
| Beam | 21-26 ft (6.40-7.92 m) |
| Draft | 3 ft 9 in-5 ft 4 in (1.14-1.63 m) |
| Bridge deck clearance | >= 30 in (0.76 m) at loaded displacement (lowest point); prefer ~33 in (0.84 m) |
| Waterline to mast tip (max) | 63 ft (19.20 m) |
| Parameter | Target | Actual (published) | Fit |
|---|---|---|---|
| LWL | 38-48 ft (11.58-14.63 m) | 41 ft (12.50 m) | OK |
| LOA | 39-52 ft (11.89-15.85 m) | 40 ft 10 in (12.45 m) | OK |
| Beam | 21-26 ft (6.40-7.92 m) | 22 ft 4 in (6.80 m) | OK |
| Draft | 3 ft 9 in-5 ft 4 in (1.14-1.63 m) | 3 ft 10 in (1.16 m) (some sources list ~3 ft 8 in) | OK |
| Bridge deck clearance | >= 30 in (0.76 m); prefer ~33 in (0.84 m) (loaded) | TBD (measure at loaded displacement; lowest point) | TBD |
| Waterline to mast tip | ≤ 63 ft (≤ 19.20 m) | 55 ft 9 in (17.00 m) | OK |

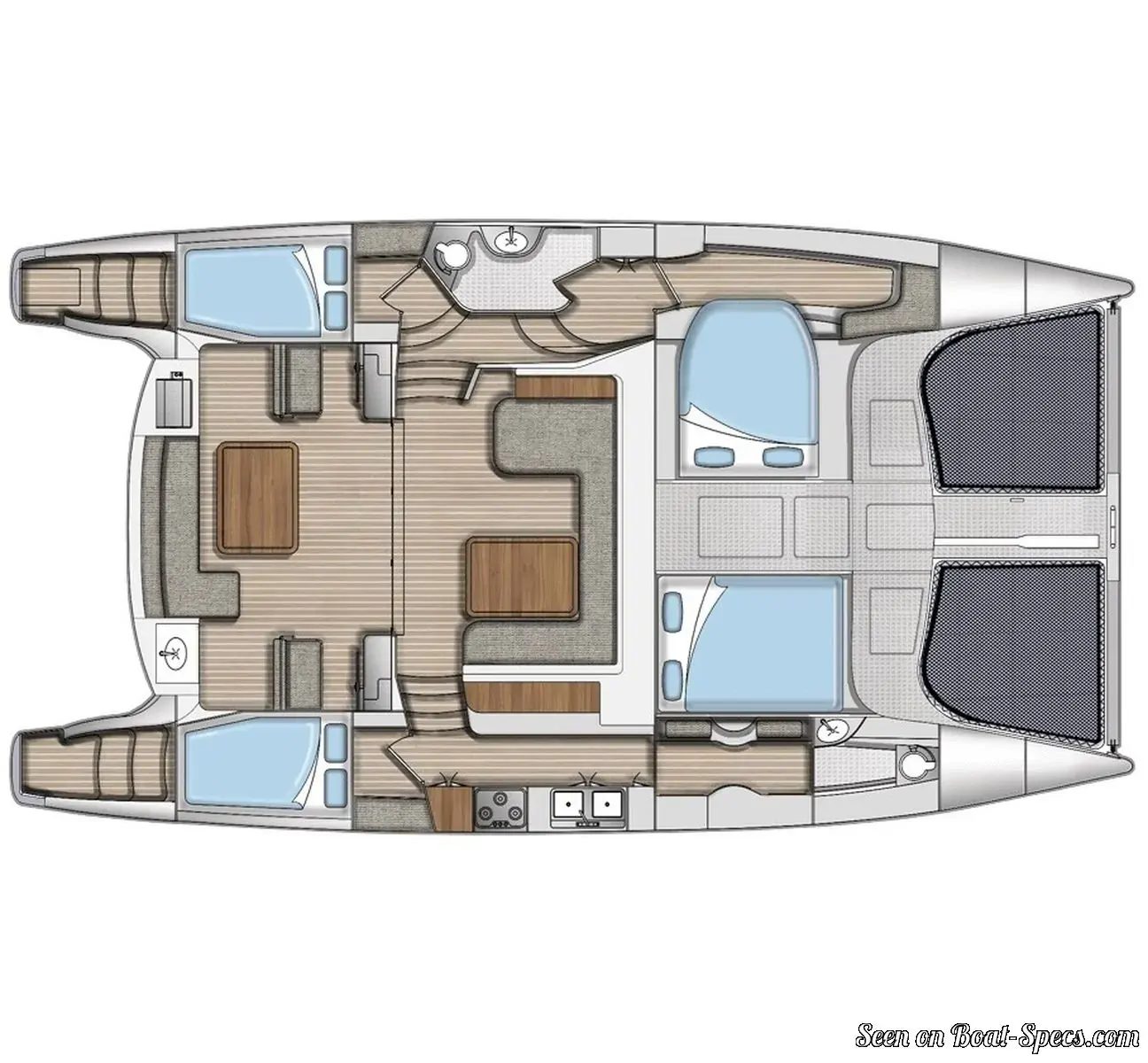

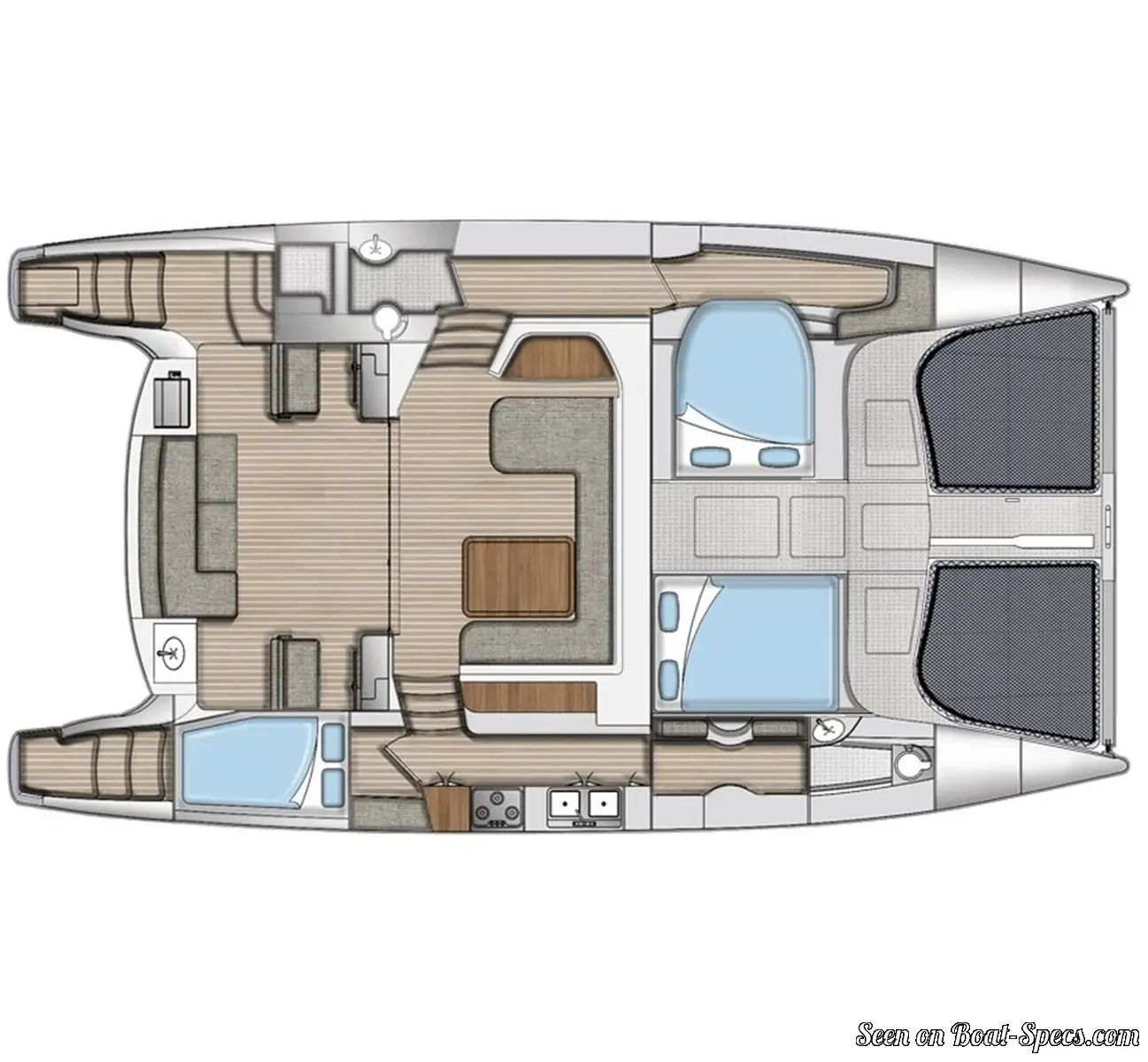

Layouts vary (eg owners 3-cabin vs charter 4-cabin). These layouts are representative.
