Candidate Models / Privilege 435
The Privilege 435 (Marc Lombard design) is a 43 ft class cruising catamaran with an air draft well below the 63 ft bridge-clearance cap, and published LWL values comfortably above 38 ft.
| Parameter | Target |
|---|---|
| LWL | 38-48 ft (11.58-14.63 m) |
| LOA | 39-52 ft (11.89-15.85 m) |
| Beam | 21-26 ft (6.40-7.92 m) |
| Draft | 3 ft 9 in-5 ft 4 in (1.14-1.63 m) |
| Bridge deck clearance | >= 30 in (0.76 m) at loaded displacement (lowest point); prefer ~33 in (0.84 m) |
| Waterline to mast tip (max) | 63 ft (19.20 m) |
| Parameter | Target | Actual | Fit |
|---|---|---|---|
| LWL | 38-48 ft (11.58-14.63 m) | 41 ft 3 in (12.57 m) | OK |
| LOA | 39-52 ft (11.89-15.85 m) | 43 ft 0 in-43 ft 1 in (13.11-13.13 m) | OK |
| Beam | 21-26 ft (6.40-7.92 m) | 23 ft 4 in (7.11 m) | OK |
| Draft | 3 ft 9 in-5 ft 4 in (1.14-1.63 m) | 4 ft 5 in (1.35 m) | OK |
| Bridge deck clearance | >= 30 in (0.76 m); prefer ~33 in (0.84 m) (loaded) | TBD (measure at loaded displacement; lowest point) | TBD |
| Waterline to mast tip | ≤ 63 ft (≤ 19.20 m) | 55 ft 9 in (17.00 m) | OK |
Summary: based on published specs, the Privilege 435 fits your baseline envelope on LWL/LOA/beam/draft and has comfortable margin on mast height.

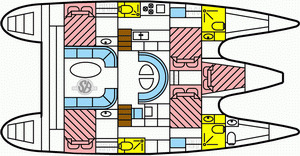

Layouts vary by boat (owner vs charter emphasis). The VPM plan below is a representative arrangement.
as-measured clearance including antenna/windex/light at the masthead.
